EXTERIOR · SHADING

Shade,
with a clean line.

Facade louvers that shield a building and its occupants from direct solar radiation, in a clean architectural line.

REQUEST A QUOTE VIEW SPECIFICATIONS
Steel / AluminiumH-3 · SL-4 · SL-5Up to 5mWeather-resistant
PRODUCT OVERVIEW

Detail. Finish.
Built to last.

Sun louvers are a simple, effective way to protect a building and its occupants from direct solar radiation — cutting heat gain and glare while keeping a clean architectural line across the facade.

The range spans the H-3, SL-4 and SL-5 profiles, in galvanized steel or aluminium, at lengths up to 5m.

Material
GI 0.50mm / Aluminium 0.65mm TCT
Profile
84mm wide · 15mm deep · up to 5m
Range
H-3 · SL-4 · SL-5
Models
84R · H-3 · SL-4 · SL-5
Use
Exterior facades
Suited to
1 space type
IMAC Sun Louvers installed
INSTALLED · BUILDING FACADES
IMAC Sun Louvers
MODELS

Available models.

84R
84mm
H-3
Profile
SL-4
Profile
SL-5
Profile
FINISHES

A finish for every brief.

55-micron powder coat or coil coat, weather-resistant, in custom RAL colours.

REQUEST FINISH SAMPLES
SPECIFICATIONS

The technical detail.

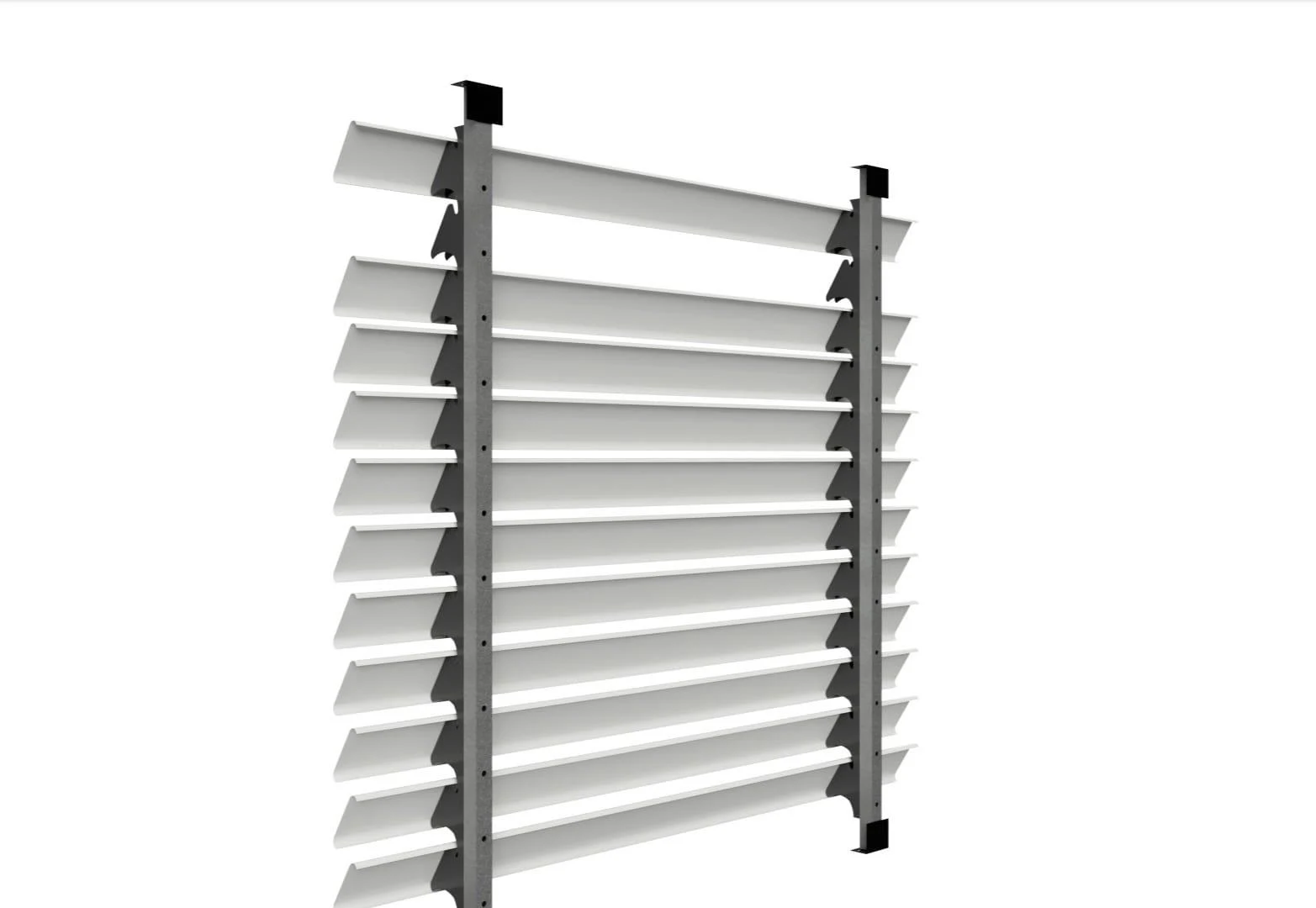

Material
84mm wide · 15mm deep · length up to 5m · Galvanized Steel 0.50mm & 0.65mm Aluminium (TCT)
Carrier
H-3 / SL-4 / SL-5 dimensions · GI 0.60mm or Aluminium 0.91mm, stove-enamelled / coil-coated black
Paint finish
55-micron powder coat, or 25-micron polyester coil coat over primer; primer on the rear
Suspension
L-clip, stud, corrosion- & weather-resistant screws and structure components as required
Corrosion Resistance
Fire Classification
Easy Wash & Clean
Light Reflectance
Acoustic Property
Humidity Resistance
Anti-Microbial
Green Building Material
WHERE IT WORKS

Suited applications

Building Facades
