IMAC U-Shaped Baffle Louvers — 25 · 50 · 75 Box
Home/Products/U-Shaped Baffle Louvers
EXTERIOR · CLADDING

Box louvers that
shrug off the weather.

Economical box louvers for external cladding — a special powder-coat finish shrugs off dirt and humidity. Wood, metallic and texture finishes.

REQUEST A QUOTE VIEW SPECIFICATIONS
Steel / Aluminium25–50mm boxesUp to 3mWood / metallic / texture
PRODUCT OVERVIEW

Detail. Finish.
Built to last.

U-shaped baffle box louvers are an easily mounted, extremely versatile exterior cladding system — an economical but long-lasting solution for external walls. A special powder-coat finish on the panel resists dirt and humidity.

Panels are available in wood, metallic and texture finishes, in box sizes from 25 × 25 × 25mm up to 50 × 50 × 50mm, with carriers in multiples of a 25mm gap.

Material
GI 0.50/0.45mm / Aluminium 0.65mm
Box
25×25×25 to 50×50×50mm
Finish
Wood / metallic / texture
Models
25 · 50 · 75 Box
Use
Exterior facades
Suited to
1 space type

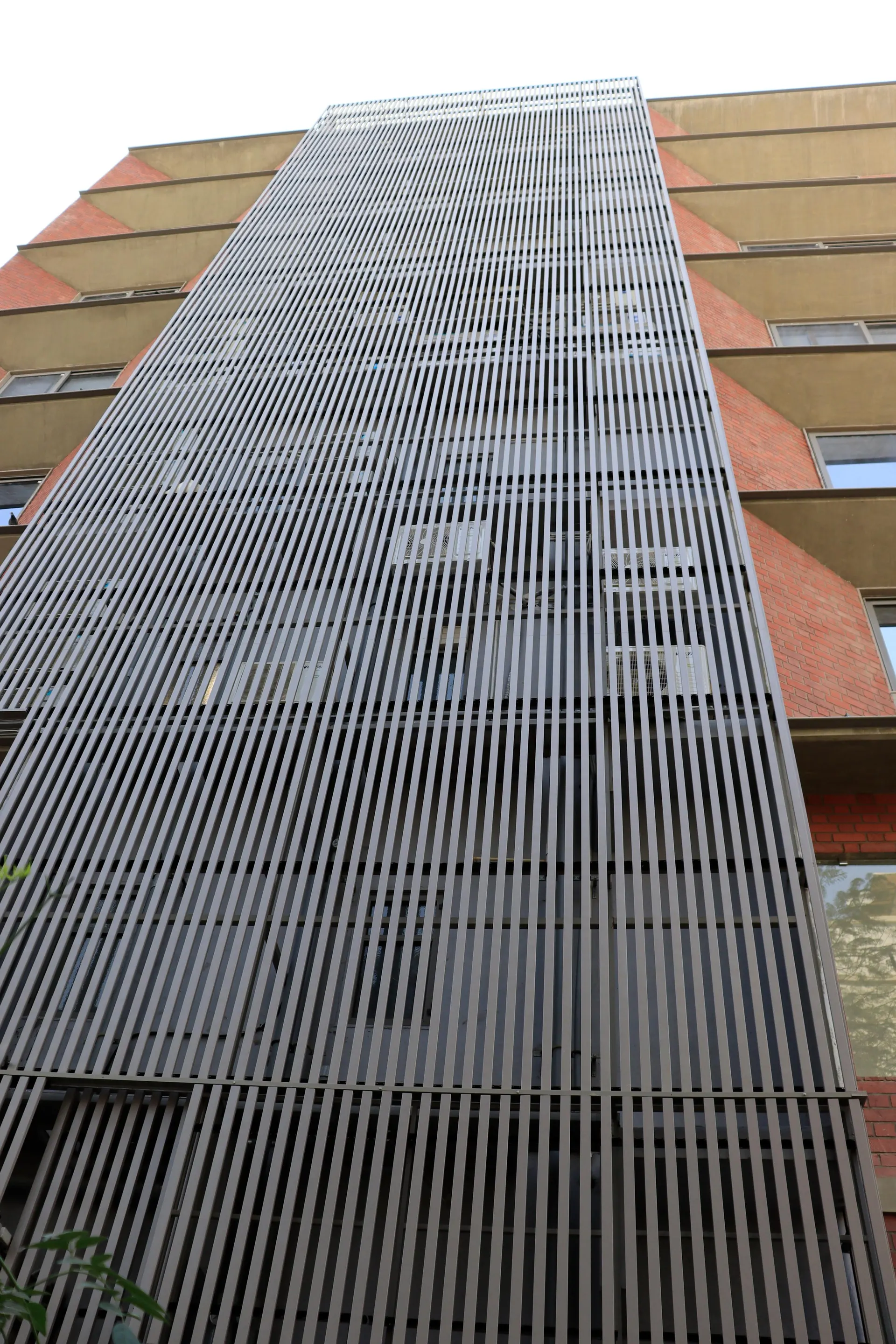

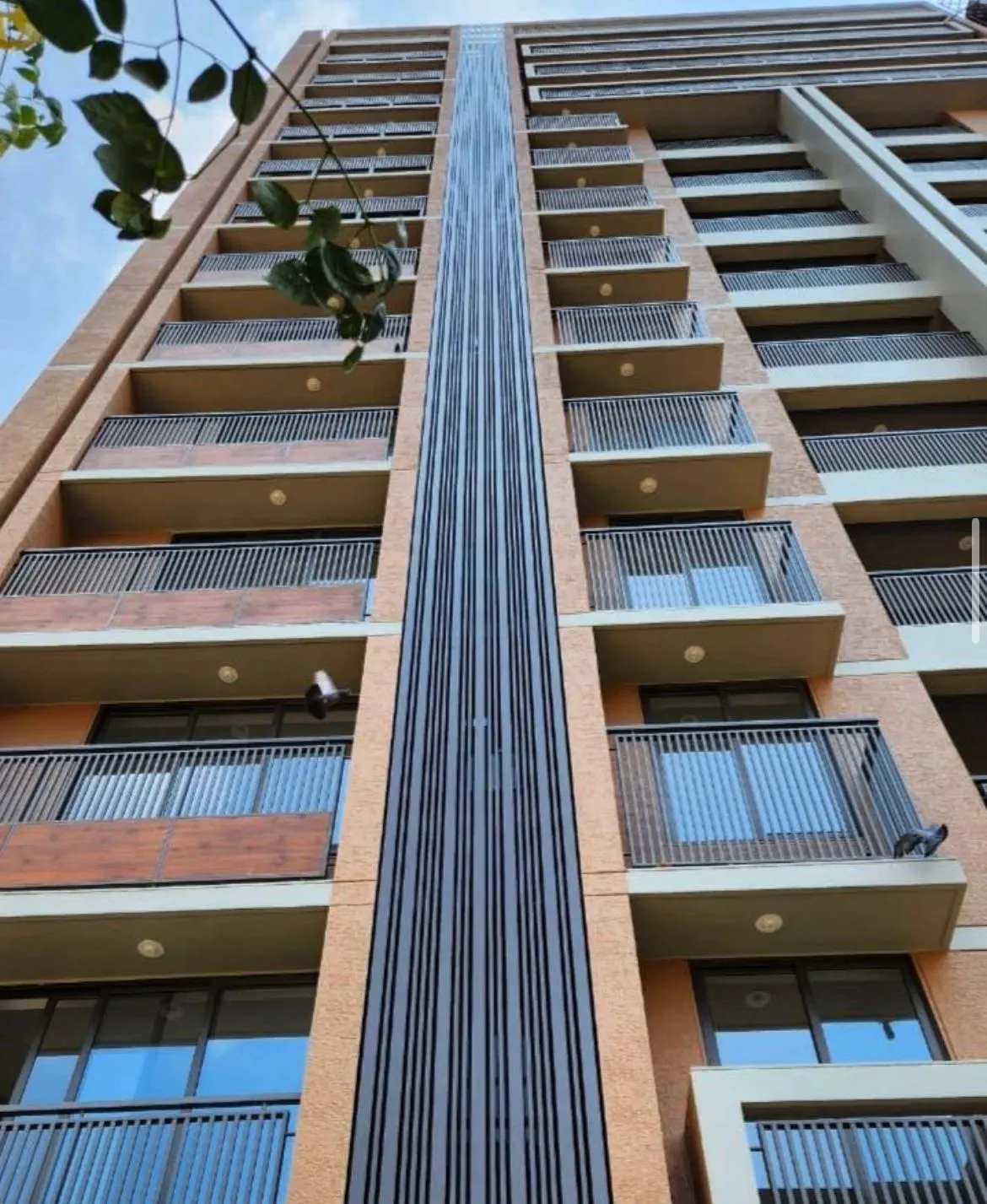

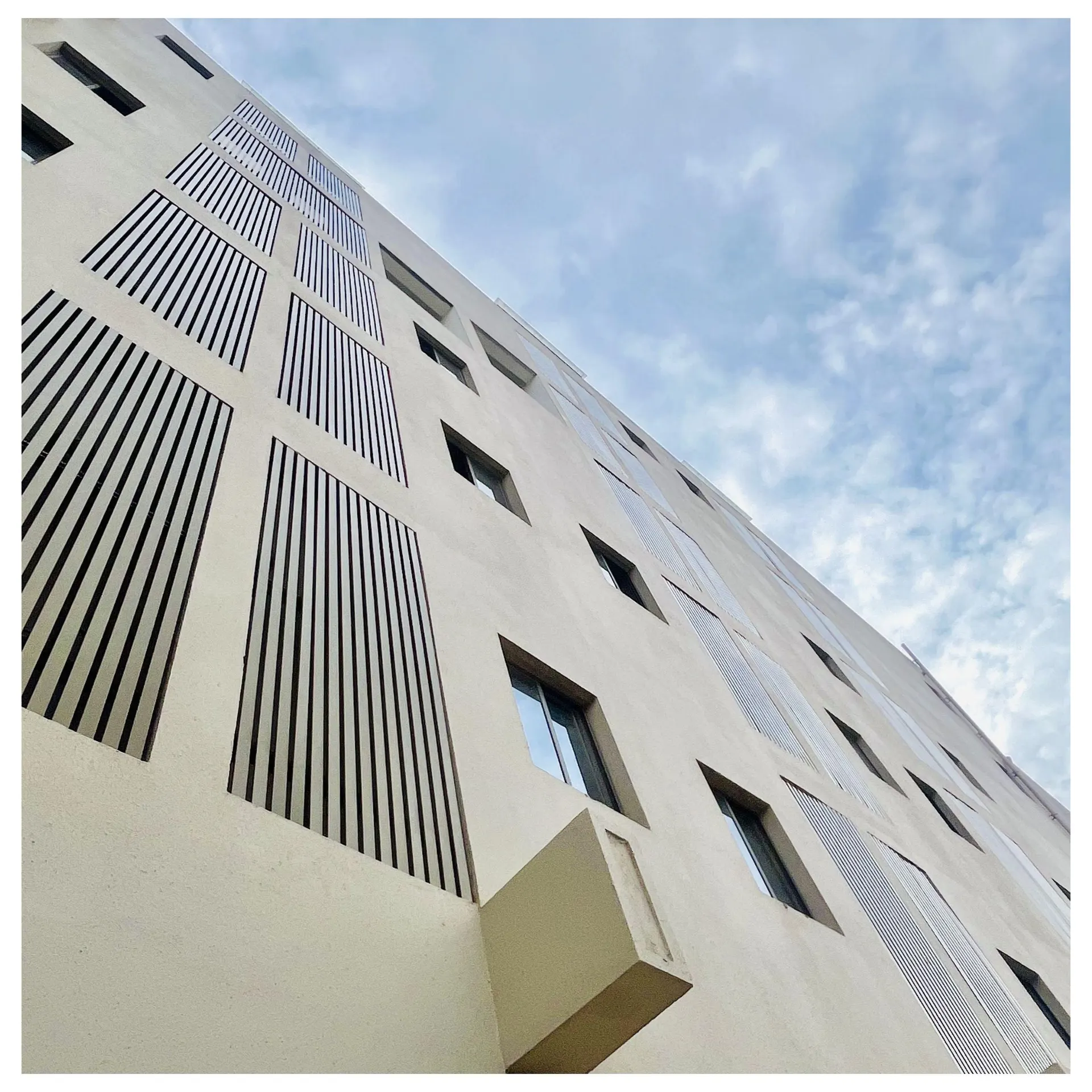

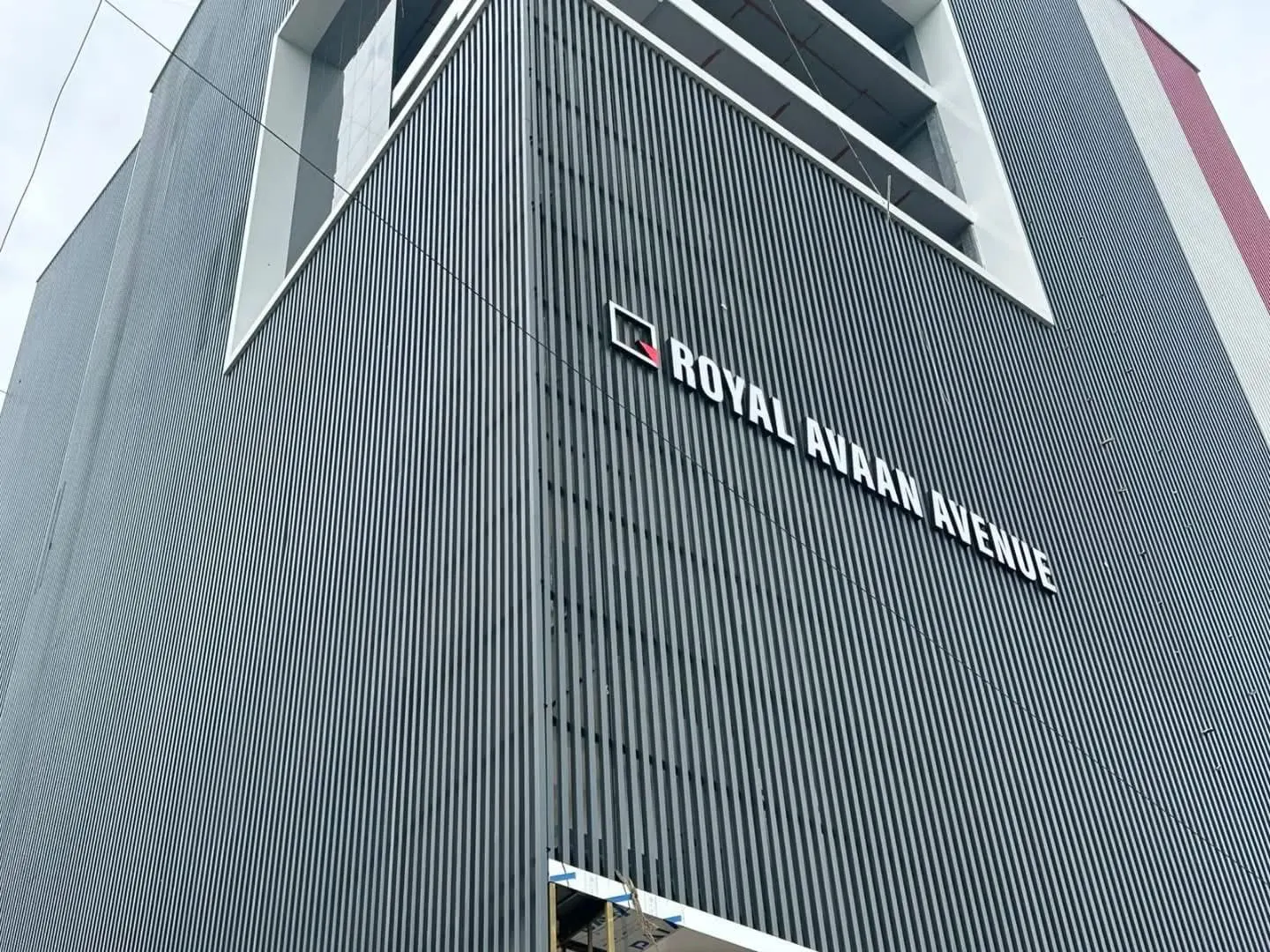

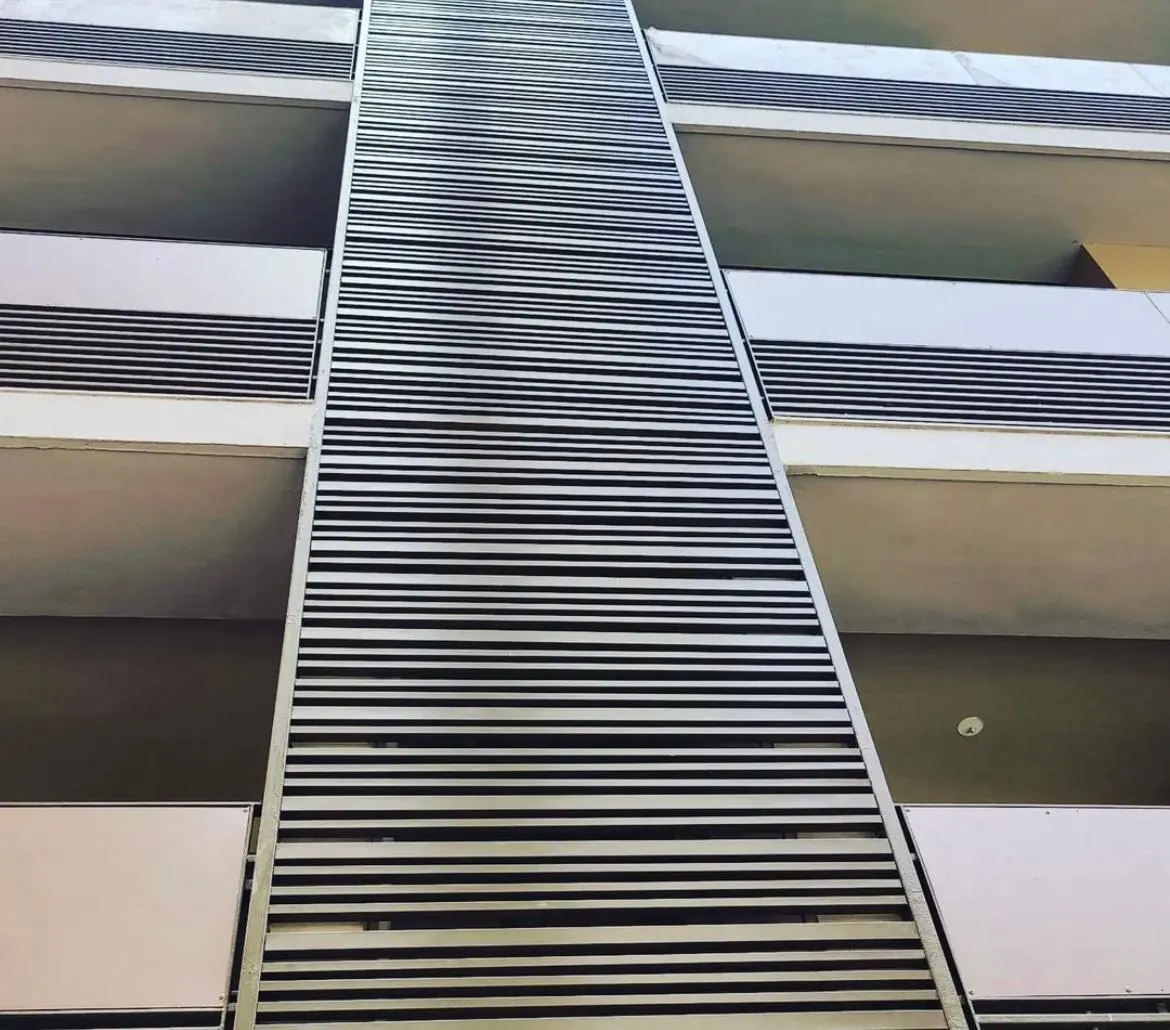

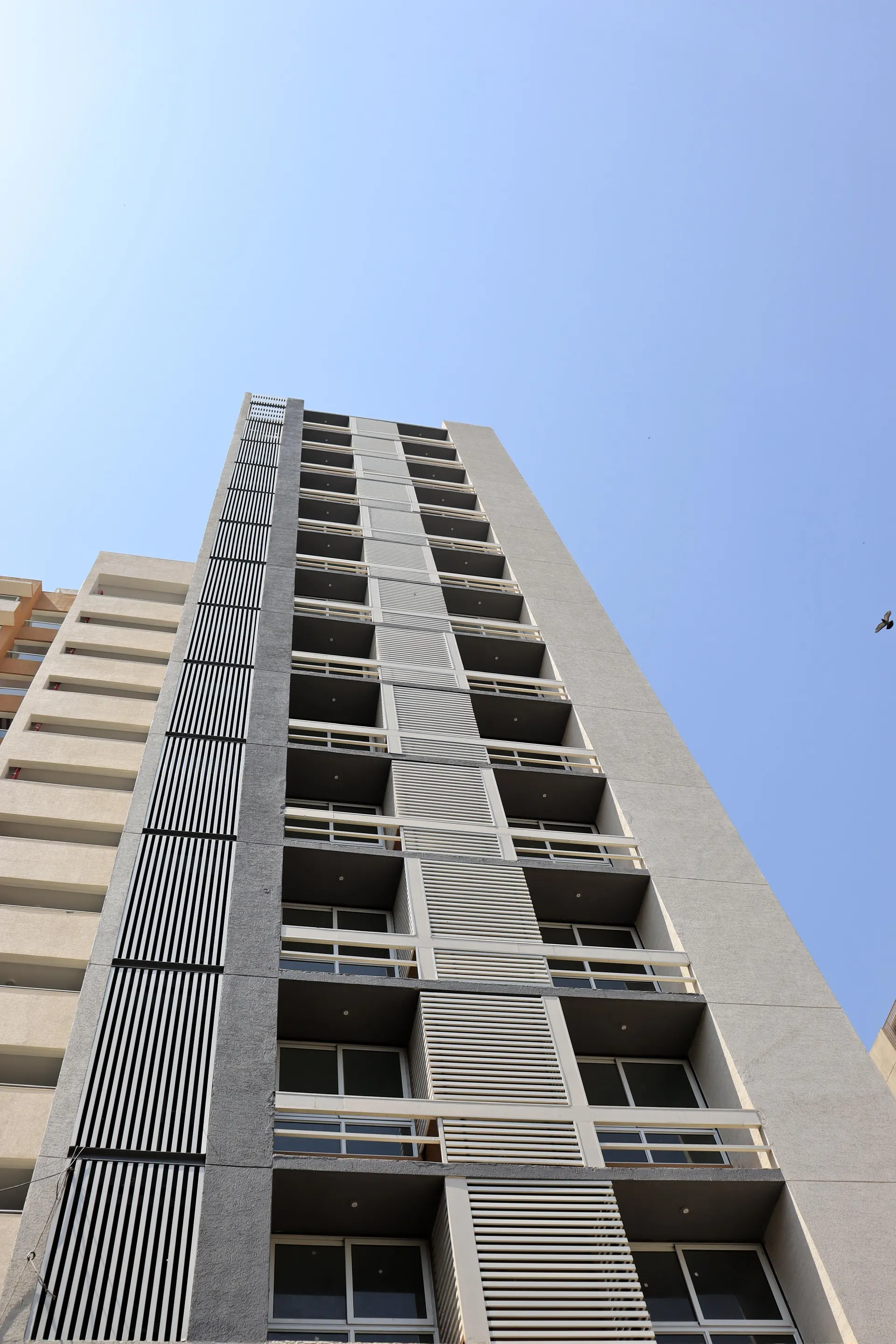

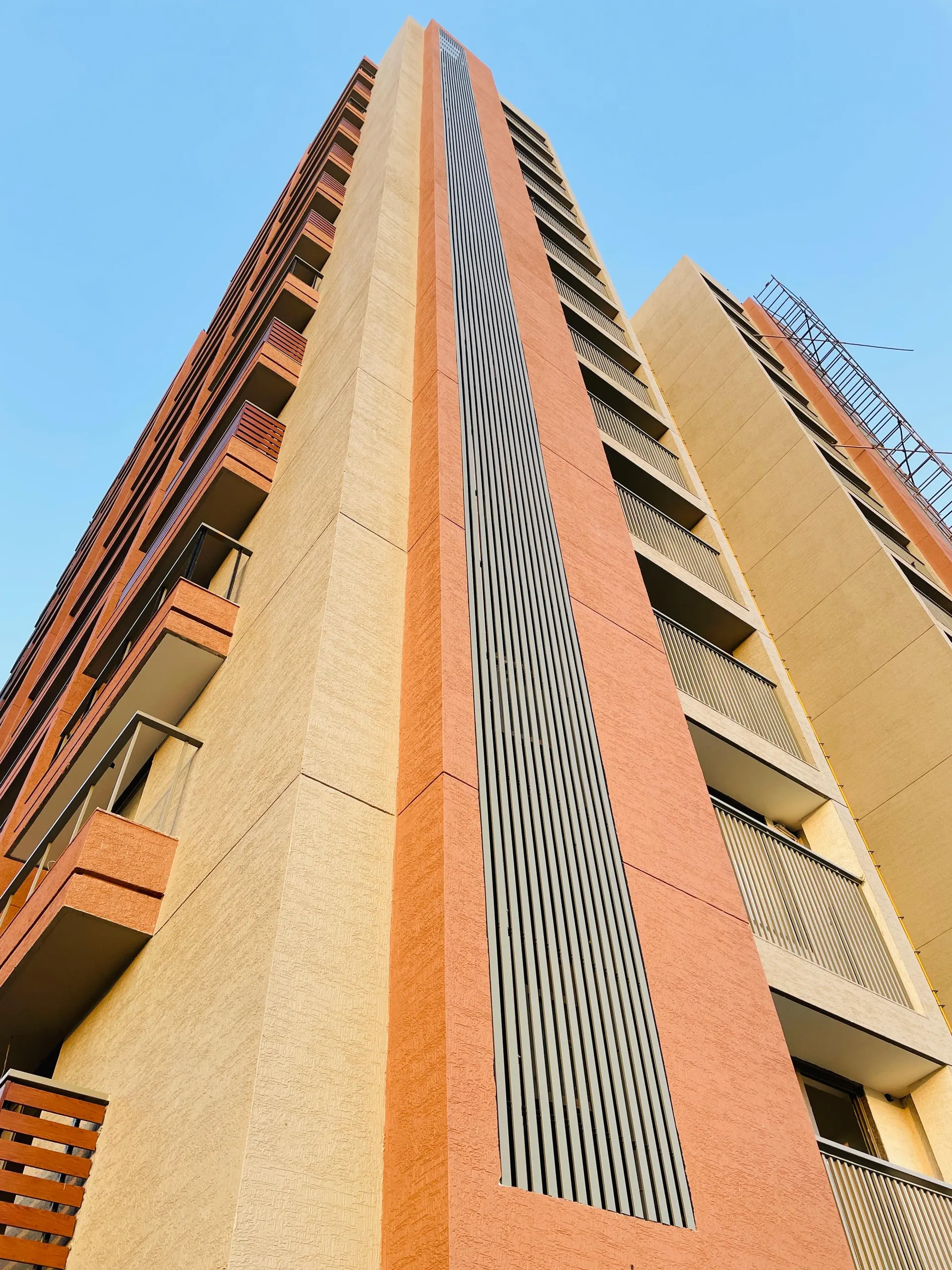

IMAC U-Shaped Baffle Louvers installed
INSTALLED · BUILDING FACADES
IMAC U-Shaped Baffle Louvers
MODELS

Available models.

25
25mm
50
50mm
75 Box
75mm
FINISHES

A finish for every brief.

Special dirt- and humidity-resistant powder coat in wood, metallic and texture finishes.

REQUEST FINISH SAMPLES
SPECIFICATIONS

The technical detail.

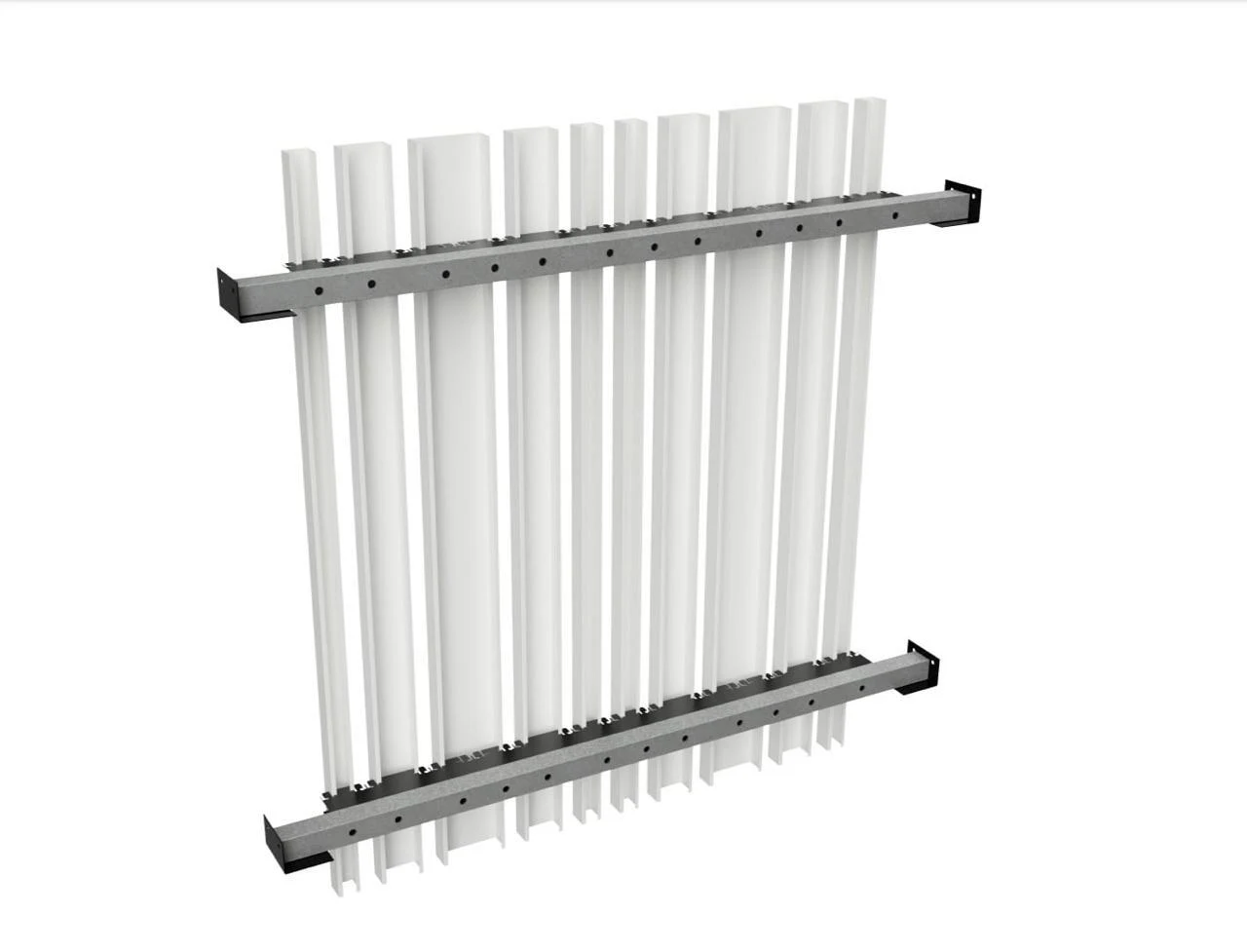

Panels
P50 — 50 / 125 / 150mm wide · P25 — 25 / 75 / 100mm wide · 50 / 100mm deep · length up to 3m · GI 0.50 / 0.45mm & 0.65mm aluminium
Box sizes
25×25×25 · 25×50×25 · 25×75×25 · 50×25×50 · 50×50×50mm (carriers in multiples of 25mm gap)
Carrier
Various gaps 25 / 50 / 75 / 100mm, 0.60mm GI stove-enamelled black
Finish
Special powder coat — wood, metallic & texture; resists dirt and humidity
Corrosion Resistance
Fire Classification
Easy Wash & Clean
Light Reflectance
Acoustic Property
Humidity Resistance
Anti-Microbial
Green Building Material
WHERE IT WORKS

Suited applications

Building Facades
